CH4, CO, CO2, H2, H2O, N2O, NH3, NO, NO2, O2, SO2 Hydrocarbons (e.g. C2H2), halogenated hydrocarbons (e.g. CH2Cl2) and other gases upon request
Ambient temperature range
+5 °C ... +45 °C
Hazardous area approvals
S715 Ex: ATEX II 3G Ex nR IIC T6 Gc Without intrinsically safe measured value outputs ATEX II 3G Ex nR [ib] IIC T6 Gc With intrinsically safe measured value outputs S720 Ex / S721 Ex: ATEX II 2G Ex db ia IIC T6 Gb Without intrinsically safe measured value outputs ATEX II 2G Ex db ia [ia] IIC T6 Gb With intrinsically safe measured value outputs

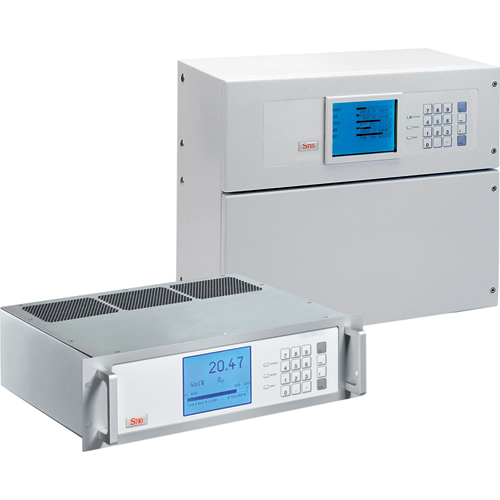

With the modular gas analyzer S700, a customer-specific and tailor-made measuring device can be put together for almost every application. Various analyzer modules for the measurement of well over 60 gases, and different housing variants offer comprehensive and individually tailored combination options.
Cooling gas monitoring of turbo generators
CO measurement for coal mill monitoring
H2 purity measurements in pressure swing adsorption systems
CO2 monitoring in natural gas during natural gas processing
Device properties:
Various analyzer modules are available: UNOR (NDIR), MULTOR (NDIR), OXOR-E (electrochemical O2), OXOR-P (paramagnetic O2), THERMOR (thermal conductivity)
Over 60 measuring components to choose from
Different housing variants
Up to three analyzer modules in one housing
Edut
Simple application-specific configuration thanks to modular design
Can also be used in Zone 1 and Zone 2 (ATEX) explosion-hazardous areas
Automatic readjustment using test gas or calibration cell
Integrated self-monitoring and error analysis
Process monitoring for the safety and quality of manufacturing processes and products by measuring flammable gases and explosive gas mixtures in zones 1 and 2
Reliable remote control and integration into distributed control systems thanks to optional equipment with various interface converters
Borealis monitoroi polypropeeni- ja polyeteenitasoja olefiinin polymerointireaktioiden aikana kemianteollisuuden jatkuvasti syötettävissä silmukkareaktoreissa.
Tutustu, miksi Raman-analysaattorit ovat erittäin tehokkaita työkaluja koostumuksen mittauksessa laajassa valikoimassa polttoaineita, joita käytetään nykyisin kaasuturbiineissa.
Industrial Emissions Directive (IED) CCEP U.S. EPA conform China's EPA compliant
Hazardous area approvals
S715 Ex: ATEX II 3G Ex nR IIC T6 Gc Without intrinsically safe measured value outputs ATEX II 3G Ex nR [ib] IIC T6 Gc With intrinsically safe measured value outputs S720 Ex / S721 Ex: ATEX II 2G Ex db ia IIC T6 Gb Without intrinsically safe measured value outputs ATEX II 2G Ex db ia [ia] IIC T6 Gb With intrinsically safe measured value outputs
Emission Monitoring Solutions – broad instrument portfolio and
longstanding experience
Esite (CP)
Englanti - 01/2025
New version available in English
An overview brochure about emission monitoring, their measuring principles and technologies, global requirements and services, a selection guide and the measuring devices at a glance
Korjauspalvelu varmistaa, että S700-prosessikaasuanalysaattorin toiminta saadaan palautettua nopeasti. Laitteelle tehdään myös yleinen päivitys mahdollisten tulevien ongelmien estämiseksi.
