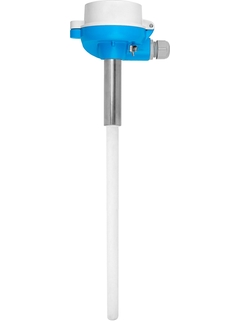

Product picture Thermocouple thermometer TAF12D

TAF12D
High temperature TC thermometer

Applicable for ceramic baking ovens, brickworks, porcelain production and glass industries

TAF12D
Please Wait (spinning wheel)
Lataa hintaa
Hintoja ei tilap. saatavilla
Price on request
from CHF ??.-

Tärkeimmät tekniset tiedot

  • Accuracy

    class 2 acc. to IEC 60584

  • Max. process pressure (static)

    at 20 °C: 1 bar (15 psi)

  • Operating temperature range

    Type S:
    0 °C ...1.600 °C
    (32 °F ...2.912 °F)
    Type R:
    0 °C ...1.600 °C
    (32 °F ...2.912 °F)
    Type B:
    600 °C ...1.700 °C
    (1.112 °F ...3.092 °F)

  • Max. immersion length on request

    up to 3.500,00 mm (137,80'')

Käyttöalue

Measuring points with extremely high process temperatures require these special thermometers with ceramic thermowells and thermocouples made from special metals, such as platinum and rhodium. The thermowell and the internal sheath made from ceramic materials protects from mechanical and chemical damages in the process and increases the life span of the sensors. This leads to: Cost savings for maintenance of the measuring point, quality improvements of the products and increased plant safety.

  • The TAF12D are assemblies with double ceramic protection tubes, designed specifically for applications such as ceramic baking ovens, brickworks, porcelain production and glass industries. They contain a single or double TC insert in ceramic insulators.

  • Process temperatures: up to +1700 °C (+3092 °F)

Edut

  • Long lifetime by usage of innovative thermowell materials with increased wear and chemical resistance

  • Long term stable measurement due to sensor protection with non-porous materials

  • Flexible product selection by modular design

  • Optimized life cycle costs by means of replaceable spare parts
