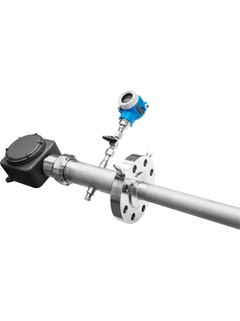

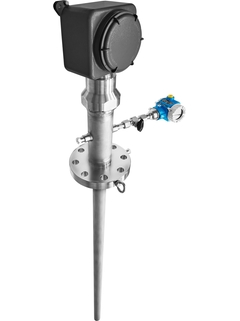

iTHERM MultiSens Linear TMS12
Multipoint thermometer

Tärkeimmät tekniset tiedot

• Accuracy

  class 1 acc. to IEC 60584
  class Special ASTM E230 and ANSI MC 96.1
  IEC60751 Class A
  IEC60751 Class AA

• Response time

  depending on configuration:
  TC:
  t50 = 21 s
  t90 = 52 s
  RTD:
  t50 = 42 s
  t90 = 108 s

• Max. process pressure (static)

  at 20 °C: 240 bar (3481 psi)

• Operating temperature range

  Type K:
  max. 1.070 °C
  (max. 1.958 °F)
  Type J:
  max. 520 °C
  (max. 968 °F)
  Type N:
  max. 1.100 °C
  (max. 2.012 °F)
  Pt100 WW:
  -200...600 °C
  (-328…1.112 °F)
  Pt100 TF:
  -50…400 °F
  (-58…752 °F)

• Max. immersion length on request

  up to 15.000,00 mm (590'')
