Picture of Coriolis flowmeter Proline Promass K 10 for multivariable measurement in utilities

Proline Promass K 10
Coriolis flowmeter

Flowmeter with minimized total cost of ownership with easy-to-use operation concept

8KBB
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information

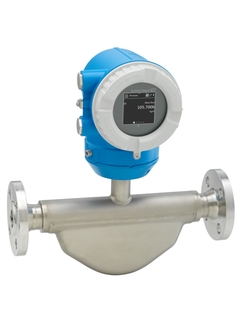

Picture of Coriolis flowmeter Proline Promass K 10 for multivariable measurement in utilities
  • F
  • L
  • E
  • X
©Endress+Hauser

Proline Promass K 10 – multivariable measurement for utility applications

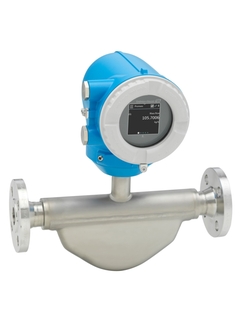

Picture of Coriolis flowmeter Proline Promass K 10 for basic applications in hazardous areas
  • F
  • L
  • E
  • X
©Endress+Hauser

Proline Promass K 10 for basic applications in hazardous areas

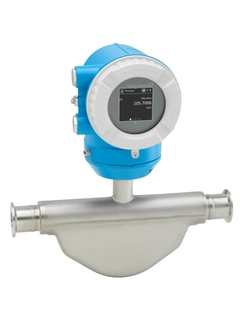

Picture of Coriolis flowmeter Proline Promass K 10 for hygienic applications
  • F
  • L
  • E
  • X
©Endress+Hauser

Proline Promass K 10 for hygienic applications in utilities

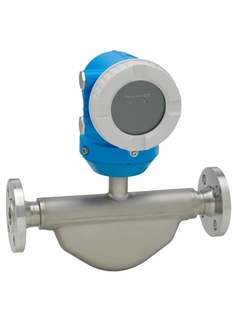

Picture of Coriolis flowmeter Proline Promass K 10 with flange connections and LED display
  • F
  • L
  • E
  • X
©Endress+Hauser

Proline Promass K 10 with LED display for basic applications

Proline Promass K 10 – multivariable measurement for utility applications

Heartbeat Technology IO-Link digital communication technology

Specs at a glance

  • Max. measurement error

    Mass flow (liquid): ±0.5 % (standard), ±0.15 % (option)
    Mass flow (gas): ±0.75%

  • Measuring range

    0 to 180 000 kg/h (0 to 6615 lb/min)

  • Medium temperature range

    –40 to +150 °C (–40 to +302 °F)

  • Max. process pressure

    PN 40, Class 300, 40K

  • Wetted materials

    Measuring tube: 1.4539 (904L)
    Connection: 1.4404 (316/316L)

Field of application

Promass K is the cost-efficient Coriolis solution for elementary mass flow measuring tasks. It provides dependable measurement in basic applications featuring air, gas, fuel and water. With its straightforward hard- and software design, Promass K 10 simplifies every step in its life cycle from engineering to servicing at usual Endress+Hauser quality. Heartbeat Technology enables measurement reliability and extension of recalibration cycles.

  • Measuring principle operates independently of physical fluid properties such as viscosity or density

  • Measurement of liquids and gases in utility processes and basic applications

Device properties

  • Compact dual-tube sensor

  • Medium temperature up to +150 °C (+302 °F)

  • Process pressure up to 100 bar (1450 psi)

  • System integration with HART, IO-Link, Modbus RS485

  • Flexible operation with app and optional display

Benefits

  • Easy integration into your plant infrastructure with IO-link

  • Cost effective device for basic process and hygienic applications (3-A and cGMP, EHEDG)

  • Fewer process measuring points – multivariable measurement (flow, density, temperature)

  • Space-saving installation – no in-/outlet run needs

  • Optimum usability – display with touch screen (HART and MODBUS RS485 communication only) or operation with mobile devices and SmartBlue app

  • Simple, time-saving commissioning – guided parameterization in advance and in the field

  • Integrated verification – Heartbeat Technology
