FieldPort SWA50

FieldPort SWA50

Intelligent Bluetooth® and/or WirelessHART adapter for all HART field devices

SWA50
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
FieldPort SWA50
  • F
  • L
  • E
  • X
©Endress+Hauser

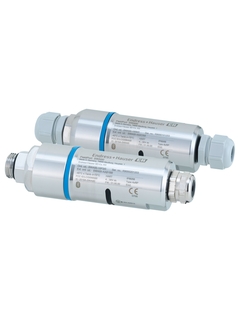

FieldPort SWA50 - Intelligent Bluetooth® and/or WirelessHART adapter

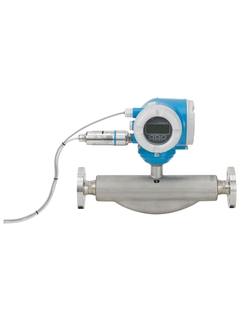

Direct mounting of FieldPort SWA50
  • F
  • L
  • E
  • X
©Endress+Hauser

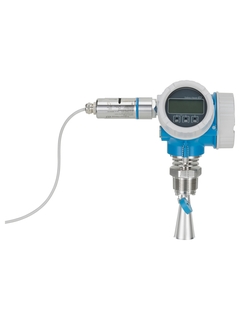

Direct mounting of FieldPort SWA50

Direct mounting of FieldPort SWA50
  • F
  • L
  • E
  • X
©Endress+Hauser

Direct mounting of FieldPort SWA50

FieldPort SWA50 - Intelligent Bluetooth® and/or WirelessHART adapter

Specs at a glance

  • Output

    WirelessHART and/or Bluetooth® communication interface,
    Operating frequency: 2.4 GHz (ISM band),
    Transmission range under reference conditions:
    WirelessHART communication - up to 200 m (656 ft),
    Bluetooth communication - up to 40 m (131 ft)

Field of application

The FieldPort SWA50 converts the HART signal of the connected HART field device to a reliable and encrypted Bluetooth® or WirelessHART signal. The Endress+Hauser SmartBlue app or the Endress+Hauser Field Xpert is used to configure the FieldPort SWA50 and to visualize the measured values and status of the connected HART field device. HART field devices can be connected to the Netilion Cloud via the FieldPort SWA50 and a FieldEdge device.

The FieldPort can be retrofitted to all 2-wire and 4-wire HART field devices in both hazardous and non-hazardous areas. The robust stainless steel housing allows the FieldPort SWA50 to be installed even in harsh industrial environments.

Benefits

  • Reliable transmission of the measured process values through the connected FieldPort SWA50 via encrypted Bluetooth® or WirelessHART communication

  • Easy to retrofit all 2-wire or 4-wire HART field devices

  • Easy connection of all HART field devices to the Netilion Cloud

  • Loop-powered adapter, without affecting the process signal

  • Easily accessible, wireless, diagnostic information of connected HART field device
