Dipfit CLA140 is designed for all demanding applications where aggressive media is involved.

Conductivity assembly
Dipfit CLA140

Immersion assembly for the chemical and the pulp & paper industry

CLA140
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information

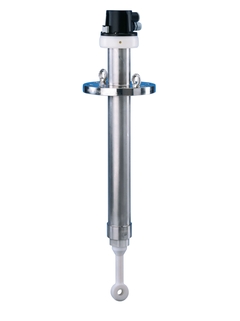

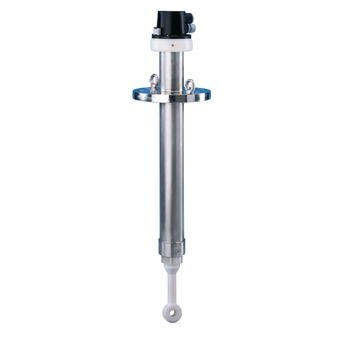

Conductivity assembly Dipfit CLA140 ©Endress+Hauser

Specs at a glance

  • Process temperature

    max. 150°C
    (302°F)

  • Process pressure

    max. 10 bar
    (145 psi)

Field of application

The Dipfit CLA140 immersion assembly is designed for all demanding applications where aggressive media is involved. With its flange connection and sealing concept, Dipfit sits safely in the process even at high temperatures and pressures. Equipped with an easy-to-use bayonet lock, the assembly streamlines sensor installation and maintenance.

Dipfit CLA140 is an immersion assembly for conductivity sensors in:

  • Chemicals

  • Pulp & paper

Dipfit CLA140 is suitable for:

  • CLS50/CLS50D toroidal conductivity sensors

Benefits

  • Easy installation and removal of sensor thanks to bayonet lock mounting

  • Robust design withstands aggressive media, high pressures and temperatures

  • Reduced condensation of water due to breathable Goretex® filter

  • Flexible connection to the process by means of various flanges (DIN, ANSI, JIS)

  • Immersion depth from 500 to 2500mm available
