This product is no longer available.
Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Product Phased Out.

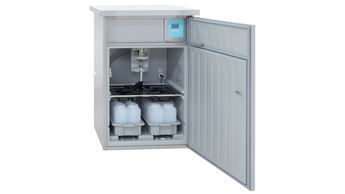

Water sampler, liquid, stationary,
thermostatic controlled.
Sample volume: 20...200ml, vaccuumtec.
Sample control by: time, quantity,
event, flow (DFP) optional.
Input: 3x digital, 1x analogue 0/4-20mA.
Output: 3x digital.
WxHxD:800x1300x700mm.
Weight: approx: 135kg.
Suction hose to be ordered separately.
:: Menue driven operation, quick-setup.
Predecessor
-

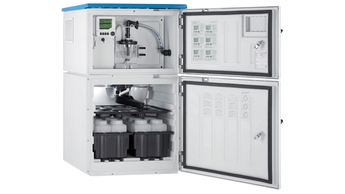

Successor
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
FLEX selections Technical excellence Simplicity - F
- L
- E
- X
Fundamental selection
Meet your basic measurement needs
Technical excellence Simplicity - F
- L
- E
- X
Lean selection
Handle your core processes easily
Technical excellence Simplicity - F
- L
- E
- X
Extended selection
Optimize your processes with innovative technologies
Technical excellence Simplicity - F
- L
- E
- X
Xpert selection
Master your most challenging applications
Technical excellence Simplicity Variable
-
-
-
Technical Information (TI)
Technical information stationary water sampler ASP Station 2000
Automaticsampler for liquid media. Optional: ATEX II 3G certification for safe operation in zone 2 hazardous areas
EN 22/07/2004Language:
English
Version:
22/07/2004
File size:
1.5 MB
File name:
TI059ren.pdf
-
-
-
Operating Instruction (BA)
ASP Station 2000 RPS20B Operating Instructions
Stationary sampler for liquid media
EN 15/02/201929/07/2014Language:
English
Version:
15/02/2019
File size:
2.7 MB
File name:
BA01324CEN_0219.pdf
-
-
-
Operating Instruction (BA)
ASP Station 2000
Stationary water sampler
EN 14/07/201001/09/200703/05/200626/03/200423/02/2004Language:
English
Version:
14/07/2010
File size:
9.2 MB
File name:
BA080rc4_0710.pdf
-
-
-
Operating Instruction (BA)
Appendix to the operating manual ASP 2000 DP-Slave-Module
Connecting the ASP 2000 to Profibus DP using the serial interface and the _is Pro Gate ® from ifak system GmbH
EN 25/05/2002Language:
English
Version:
25/05/2002
File size:
776.6 KB
File name:
zba146ren.pdf
-
-
-
Operating Instruction (BA)
Operating manual Alphanumeric circular chart recorder Circu-log p Options
Operating manual Alphanumeric circular chart recorder Circu-log p Options
EN 25/01/200504/06/2003Language:
English
Version:
25/01/2005
File size:
589.4 KB
File name:
ba085ren.pdf
-
-
-
Operating Instruction (BA)
Operating Manual Water sampler asp-station a 2
Installation and operatinginstructions
EN 25/04/1997Language:
English
Version:
25/04/1997
File size:
748.3 KB
File name:
ba020ren.pdf
-
-
-
Operating Instruction (BA)
CE4 Measurement station
CE4 Measurement station
EN 13/10/201001/06/2003Language:
English
Version:
13/10/2010
File size:
3 MB
File name:
Ba160Ren_1310.pdf
-
-
-
Operating Instruction (BA)
Operating Manuals ReadWin 2000 (GB)
Operating Manuals ReadWin 2000
EN 01/01/201031/10/200820/06/200725/07/2001Language:
English
Version:
01/01/2010
File size:
6.3 MB
File name:
BA137Ren_0110.pdf
-
-
-
Operating Instruction (BA)
Zusatzbetriebsanleitung/Addition Manuals ASP Station 2000
ASP Station 2000 Parametrierung mit dem #Quick-Setup#
EN 01/04/2000Language:
English
Version:
01/04/2000
File size:
115.4 KB
File name:
ba108rc4.pdf
-
-
-
Operating Instruction (BA)
Operating Manual Multi-function water sampler
asp-station d 2 Installation and operating instructions
EN 25/01/2005Language:
English
Version:
25/01/2005
File size:
927.5 KB
File name:
ba034ren.pdf
-
-
Key for standard door ASP2000 (1pair)
-
Housing/housing accessories
Drawing numberOrder codeS51000233 -
-
Lock ASP2000 standard with key
-
Housing/housing accessories
Drawing numberOrder codeS51000244 -
-
Handle for lock ASP 2000 (without lock)
-
Housing/housing accessories
Drawing numberOrder codeS51000245 -
-
Lock ASP2000 d-door/top/+key
-
Housing/housing accessories
Drawing numberOrder codeS51001502 -
-
Membrane set EPDM, pump (1-head)
-
Pump
Drawing numberOrder codeC51003140 -
-
Pump (1-head) PM 13733-023
-
Pump
Drawing numberOrder codeCRPS20X-PC -
-
Pump (2-head) PM 10069-023.1.2
-
Pump
Drawing numberOrder codeCRPS20X-PE -
-
Membrane set Viton, pump (1-head) PM 13733-023
-
Pump
Drawing numberOrder codeCRPS20X-PF -
-
Membrane set EPDM, pump (2-head) PM 10069-023.1.2
-
Pump
Drawing numberOrder codeCRPS20X-PG -
-
Membrane set Viton, pump (2-head) PM 10069-023.1.2
-
Pump
Drawing numberOrder codeCRPS20X-PH -
-
Excess pressure valve, pump (2-head)
-
Pump
Drawing numberOrder codeCRPS20X-PI -
-
Sealing plate rubber airmanager LIQUI-B
-
Pneumatic
Drawing numberOrder codeE50079265 -
-
Air manager cpl. ASP2000
-
Pneumatic
Drawing numberOrder codeE51003139 -
-
Hose connection kit ASP2000/S/P/L-BOX
-
Hose/hose accessories
Drawing numberOrder codeU51003970 -
-
Pneumatic hose kit cpl.
-
Pneumatic
Drawing numberOrder codeERPS20X-PA -
-
Hose fitting for side of cabinet (left)
-
Hose/hose accessories
Drawing numberOrder codeVRPS20X-TA -
-
Suction hose (internal d.a.) cpl.
-
Hose/hose accessories
Drawing numberOrder codeTRPS20X-TB -
-
Suction hose cpl.option flow proport. (internal d.a.)
-
Hose/hose accessories
Drawing numberOrder codeTRPS20X-TD -
-
Dosing chamber acrylic 500ml
-
Dosing unit
Drawing numberOrder codeJ50038228 -
-
Dosing tube (upstairs) cpl.
-
Dosing unit
Drawing numberOrder codeIC50042898 -
-
Dosing chamber acrylic 200ml
-
Dosing unit
Drawing numberOrder codeJ50072149 -
-
Dosing chamber fixing ring 200ml
-
Dosing unit
Drawing numberOrder codeIB50072150 -
-
Glass dosing chamber 500ml, retrofit-kit
-
Dosing unit
Drawing numberOrder codeJ50079732 -
-
O-ring set for dosing system
-
further parts
Order code50079747 -
-
Air filter cpl. A/A2+D/D2
-
Dosing unit
Drawing numberOrder codeIA50086064 -
-
Spring contact dosing unit ASP 2000
-
Dosing unit
Drawing numberOrder codeHA50089638 -
-
Locking handle for ASP2000 dosing system
-
Dosing unit
Drawing numberOrder codeN50089664 -
-
Flange with dosing tube 200ml
-
Dosing unit
Drawing numberOrder codeI50090342 -
-
Diaphragm for hose clamp
-
Pneumatic
Drawing numberOrder codeL51002657 -
-
Dosing chamber glass 500ml bayonet lock
-
Dosing unit
Drawing numberOrder codeJ51005197 -
-
Locking handle bolt cpl.ASP2000
-
Dosing unit
Drawing numberOrder codeN51005846 -
-
Repair kit cover hose clamp ASP2000
-
Dosing system
Drawing numberOrder codeH51007067 -
-
Dosing bracket cpl. + hose clamp
-
Dosing system
Drawing numberOrder codeHRPS20X-DA -
-
Dosing system 200ml Dos.chamber,lid,inflow and outflow hoses
-
Dosing unit
Drawing numberOrder codeIRPS20X-DC -
-
Conductivity level sensor set 200ml (only with dosing chamber 200ml)
-
Dosing unit
Drawing numberOrder codeKRPS20X-DD -
-
Conductivity level sensor set 350ml (only with dosing chamber 500ml)
-
Dosing unit
Drawing numberOrder codeKRPS20X-DE -
-
Conductrivity level sensor set 500ml (only with dosing chamber 500ml)
-
Dosing unit
Drawing numberOrder codeKRPS20X-DF -
-
O-ring set, option flow proportional + shaft seal
-
further parts
Order codeRPS20X-TE -
-
Silicone hose 15x2 for distribution
-
Hose/hose accessories
Drawing numberOrder codeM50031916 -
-
Silicon drain hose DN15x2 L=160
-
Hose/hose accessories
Drawing numberOrder codeM50090599 -
-
Temperature sensor wet compartment
-
Sensoric
Drawing numberOrder codeRARPS20X-DT -
-
Adapter distribution drive ASP2000
-
further parts
Drawing numberOrder codeWD50089319 -
-
Distribution pan 6x (distr.12 bottles)
-
Dosing system
Drawing numberOrder codeW50089636 -
-
Distribution pan 12x distr.24 bottles
-
Dosing system
Drawing numberOrder codeW50089637 -
-
Distribution tap drive cpl. ASP2000
-
further parts
Drawing numberOrder codeWA51003682 -
-
Distribution tap + adapter
-
further parts
Drawing numberOrder codeWBRPS20X-VB -
-
Connection cable distribution tap drive
-
Cable/cable accessories
Drawing numberOrder codeRBRPS20X-VC -
-
Interface cable + ReadWin 2000 only for option memory
-
Electronic
Drawing numberOrder codeFRPS20A-VK -
-
Cable ASP2000 LF with temperature sensor
-
further parts
Order code50090371 -
-
Maintenance kit ASP2000, small O-ring set, dosing chamber 200ml, airfilter cpl. diaphragm hose clamp
-
Pneumatic
Drawing numberOrder codeLRPS20X-MA -
-
Maintenance ASP 2000, pump (1-head) Membrane set, air manager, screwed cap R1", pressure hose lip, elbow external
-
Pneumatic
Drawing numberOrder codeERPS20X-MB -
-
Maintenance ASP 2000, pump (2-head) Membrane set, air manager, screwed cap R1", pressure hose lip, elbow external
-
Pump
Drawing numberOrder codeCRPS20X-MC -
-
Suction hose,13mm, length 3m ASP
Drawing numberOrder codeU51001074 -
Suction hose 13mm, length 10m ASP
Drawing numberOrder codeU51001076 -
Bottle 3l PE + lid + sealing
Drawing numberOrder codeZ50088586 -
Bottle 20l ASP2000 + lid
Drawing numberOrder codeZ51000416 -
Bottle 12l ASP2000 PE square + lid
Drawing numberOrder codeZ51002312 -
Composite container 30 l
Drawing numberOrder codeZRPS20A-B3 -
Composite container 60 l
Drawing numberOrder codeZRPS20A-B6 -
Bottle 1l PE + lid
Drawing numberOrder codeZRPS20A-BA -
Bottle 1l glass + lid
Drawing numberOrder codeZRPS20A-BC -
Bottle tray 6 x 3 l + bottle PE
Drawing numberOrder codeZRPS20A-FB -
Bottle tray 12 x 1 l + bottle PE
Drawing numberOrder codeZRPS20A-FC -
Bottle tray 12 x 1l + bottle glass
Drawing numberOrder codeZRPS20A-FE -
Bottle tray 2 x 12 l + bottle PE
Drawing numberOrder codeZRPS20A-FF -
Bottle tray 6x 1.8 l + bottle glass
Drawing numberOrder codeZRPS20A-FG
