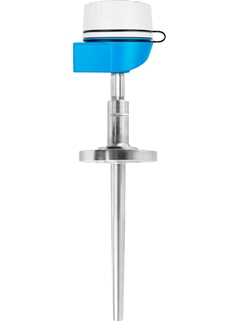

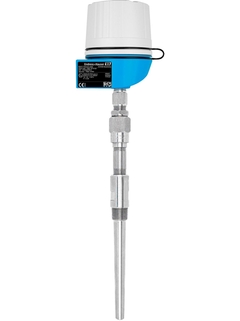

Specs at a glance
-
Accuracy
class A acc. to IEC 60751
class AA acc. to IEC 60751 -
Response time
depending on configuration
-
Max. process pressure (static)
at 20 °C: 500 bar (7.252 psi)
-
Operating temperature range
PT100 TF StrongSens:
-50 °C ...500 °C
(-58 °F ...932 °F)
PT100 WW:
-200 °C ...600 °C
(-328 °F ...1.112 °F)
PT100 TF:
-50 °C ...400 °C
(-58 °F ...752 °F) -
Max. immersion length on request
up to 5.000,00 mm (196,85'')
Field of application
The robust thermometer is designed for use in demanding and safety relevant applications e.g. in the Chemical, Oil & Gas and Energy industry. Harsh environments, corrosive substances and highest pressures can be handled by the use of robust protection tubes and special materials. An optional head transmitter with all common communication protocols makes the device ready to use with enhanced measurement accuracy and reliability compared to directly wired sensors.
Heavy duty applications
Oil & Gas processing industry
Measuring range: -200 to +600 °C (-328 to 1112 °F)
Static pressure range up to 100 bar (1450 psi)
Protection class: IP68
Benefits
Types of protection for use in hazardous locations: Intrinsic safety (Ex i.a.), flameproof (Ex d), non-sparking (Ex nA)
High degree of insert compatibility and design as per DIN 43772
Extension neck to protect the head transmitter from overheating
Fast response time with reduced/tapered tip form
High degree of flexibility thanks to modular design with standard terminal heads as per DIN EN 50446 and customer-specific immersion lengths
-
Marine approval
Predecessor
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
FLEX selections | Technical excellence | Simplicity |
---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
-
-
Technical Information (TI)
Technical Information, Omnigrad S TR66
Modular RTD assembly, flameproof barstock thermowell, with thread or flange
EN 01/07/200901/07/200826/07/2005Language:
English
Version:
01/07/2009
File size:
1.1 MB
File name:
TI284ten_0709.pdf
-
-
-
Technical Information (TI)
TR66, TC66
Modular thermometer, explosion-protected, barstock thermowell,with thread or flange
EN 20/03/202018/01/201620/08/201311/06/201215/02/2012Language:
English
Version:
20/03/2020
File size:
1.1 MB
File name:
TI01032TEN_0520.pdf
-
-
-
Ex Safety Instruction (XA)
TR1x, TR4x, TR88, TSC310, TST310, TR6x, TC1x, TC6x, TC88, TPC100, TPR100, TM411, TM412, TR24
Thermometers and inserts Ex iaIIC T1-T6 Ga, Ex iaD 20 T85-T450
EN 31/07/2020Language:
English
Version:
31/07/2020
File size:
175.2 KB
File name:
XA02109TEN_0120.pdf
-
-
-
Ex Safety Instruction (XA)
Omnigrad TR1x, TR4x, TR88, TR6x, TC1x, TC88, TEC420, TC6x ATEX: II 1D, II 1/2D Ex ia IIIC or II 1G, II 1/2G Ex ia IIC IECEx: Ex iaIIC Safety Instructions
Safety instructions for electrical apparatus certified for use in explosion-hazardous areas.
EN 03/05/201628/11/201201/06/200901/10/2007Language:
English
Version:
03/05/2016
File size:
945.3 KB
File name:
XA00072RA3_1416.pdf
-
-
-
Ex Safety Instruction (XA)
iTHERM TS111, TM211 Omniset TPx100, Omnigrad TSx310 RTD/TC inserts and cable thermometers ATEX: II1D, II1/2DEx ia IIIC or II1G, II1/2G Ex ia IIC IECEx: Ex ia IIC Ga, Ga/Gb
Safety instructions for electrical apparatus certified for use in explosion-hazardous areas.
EN 10/07/201928/11/201628/11/201210/05/201201/07/2010Language:
English
Version:
10/07/2019
File size:
977 KB
File name:
XA00100RA3_1619.pdf
-
-
-
Ex Safety Instruction (XA)
TR/TC6x
RTD / TC Thermometer ATEX, IECEx: Ex db IIC T6 Ga/Gb Ex db IICT6 Gb Ex ta/tb IIIC Txxx °C Da/Db Ex tb IIIC Txxx °C Db Safety instructions for electrical apparatus in explosion-hazardous areas
EN 16/05/202211/02/202128/11/201604/12/201527/02/2012Language:
English
Version:
16/05/2022
File size:
467 KB
File name:
XA00084REN_0322-00.pdf
-
-
-
Ex Safety Instruction (XA)
TR/TC6x
Ex d IIC T1...T6 Gb
EN 31/07/2020Language:
English
Version:
31/07/2020
File size:
203.9 KB
File name:
XA02108TEN_0120.pdf
-
-
-
Ex Safety Instruction (XA)
TRxx, TCxx, TS211, iTHERM TS111, TM211, TPx100, TSx310, TM1x1, TM411, TM412
Thermometers and inserts Ex nA IIC T6...T1 Gc
EN 31/07/2020Language:
English
Version:
31/07/2020
File size:
173.5 KB
File name:
XA02111TEN_0120.pdf
-
-
-
Ex Safety Instruction (XA)
RTD/TC thermometers TRxx, TCxx, TEC420, TS111, TM211, TM41x, TPx100, TSx310, TM1x1
ATEX: II 3G Ex nA IIC T6...T1 Gc II 3D Ex tc IIIC T85°C...T450°C Dc Safety instructions for electrical apparatus inexplosion-hazardous areas
EN 14/03/202223/05/201904/08/201716/02/201526/02/2013Language:
English
Version:
14/03/2022
File size:
454.2 KB
File name:
XA00044REN_1822-00.pdf
-
-
-
Ex Safety Instruction (XA)
Omnigrad TRxx, TCxx, TxCxxx
RTD/TC modular thermometers 0Ех ia IIC T6…T1Ga Х Ga/Gb Ех ia IIC T6…T1 Ga Х Ех ia IIIC 85 °C…450 °C Da Х Ех ia IIIC 85 °C…450 °C Da/Db Х
EN 10/03/202002/11/2016Language:
English
Version:
10/03/2020
File size:
171.9 KB
File name:
XA01459TEN_0220.pdf
-
