Vibronic
Point level detection
Nivotester FTL325N

Switching unit with NAMUR input for rail mounting or single installation

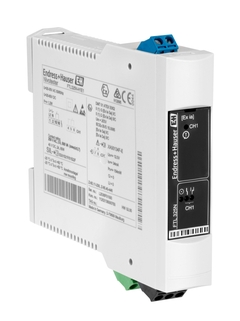

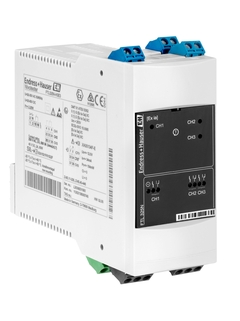

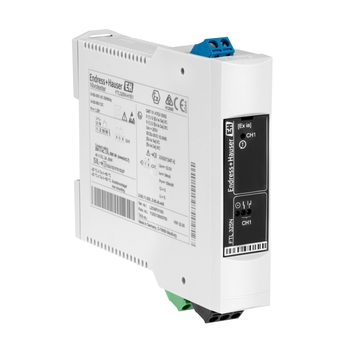

  • Nivotester FTL325N ©Endress+Hauser
  • Nivotester FTL325N ©Endress+Hauser

Nivotester FTL325N is a switching unit for point level detection in liquid tanks, also in hazardous explosion areas. Also suitable for overfill prevention in tanks with combustible or non-combustible liquids harmful to water. Two-point control and point level detection. The perfect fit for applications in safety related systems with requirements for functional safety up to SIL2 in accordance to IEC 61508 /IEC 61511 using Liquiphant with electronic insert FEL56 or FEL58.

Benefits

  • Nivotester FTL325N for connecting one, two or three measuring cells (1-, 2- or 3-channel devices)

  • Intrinsically safe signal circuits Ex ia for use of measuring sensor in explosion hazardous areas

  • Functional safety up to SIL2 through line monitoring

  • DIN Rail housing for simple series installation on standard rails in switch cabinet

  • Simple wiring using pluggable terminal blocks

  • NAMUR interface to EN 50227 (DIN 19234; NAMUR) or IEC 60947-5-6 to connect NAMUR sensors or electronic inserts

Field of application

Switching unit with NAMUR input for rail mounting or single installation.

  • Ambient temperature: -20 to +50°C (-4 to +122°F)

  • International explosion protection certificates, overfill prevention WHG, marine approvals

Features and specifications

Documents / Manuals / Software

Accessories / Spare parts

Predecessor / Successor

Predecessor: Nivotester FTL375N
