Specs at a glance
-
Measurement range
-1500mV to +1500mV
-
Process temperature
0 to 80 °C (32 to 170 °F)
-
Process pressure
1 to 10 bar abs at 80 °C
(15 to 145 psi abs at 176 °F)
Field of application

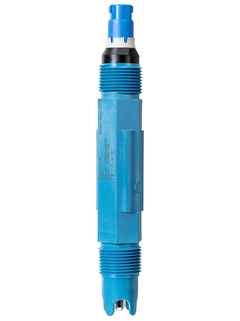

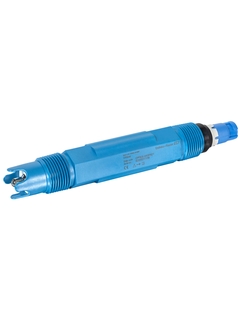

Memosens CPF82E is the digital, robust solution for ORP measurement in harsh environments. Its large, dirt-repellent PTFE junction guarantees low maintenance while its integrated assembly offers easy and compact installation. Thanks to Memosens 2.0 digital technology, CPF82E combines maximum process integrity with simple operation. It resists moisture, enables lab calibration and offers extended storage of calibration and process data providing the perfect basis for predictive maintenance.
Memosens CPF82E is the robust ORP sensor for treatment of industrial water and wastewater and for processes in mining industries. It monitors:
Inlet and outlet
Neutralization
Flotation
Leaching
With CSA C/US approval for use in hazardous areas, zones 0, 1 and 2.
Benefits
Memosens 2.0 offers extended storage of calibration and process data, enabling better trend identification and providing a future-proof basis for predictive maintenance and enhanced IIoT services.
Long time stable: Double junction provides better protection against electrode poisoning ions such as S2- or CN-.
Robust polymer housing protects against mechanical damage.
The sensor is suitable for flow and immersion installation
Non-contact, inductive signal transmission maximizes process safety.
Minimum process downtime and extended sensor lifetime reduce operating costs.
