Picture of electromagnetic flowmeter Proline Promag W 10 for basic water and wastewater applications

Proline Promag W 10
electromagnetic flowmeter

Flowmeter for basic water and wastewater applications with easy-to-use operation concept

5WBB
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-
Picture of electromagnetic flowmeter Proline Promag W 10 for basic water and wastewater applications
  • F
  • L
  • E
  • X
©Endress+Hauser

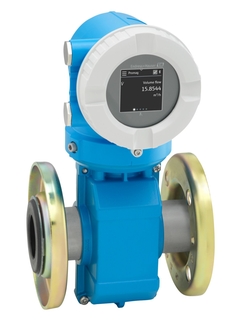

Proline Promag W 10 with lap-joint flanges for basic water and wastewater applications

Picture of electromagnetic flowmeter Proline Promag W 10 for basic water and wastewater applications
  • F
  • L
  • E
  • X
©Endress+Hauser

Proline Promag W 10 for basic water and wastewater applications

Picture of electromagnetic flowmeter Proline Promag W 10 as a remote version
  • F
  • L
  • E
  • X
©Endress+Hauser

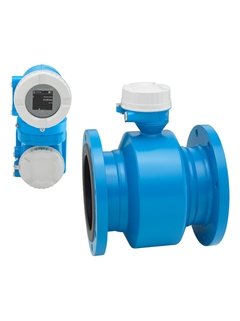

Proline Promag W 10 with remote transmitter for basic water and wastewater applications

Proline Promag W 10 with lap-joint flanges for basic water and wastewater applications

Heartbeat Technology

Specs at a glance

  • Max. measurement error

    Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)

  • Measuring range

    0.5 m3/h to 263000 m3/h (2.5gal/min to 1665 Mgal/d)

  • Medium temperature range

    Liner material hard rubber: 0 to +80 °C (+32 to +176 °F)
    Liner material polyurethane: –20 to +50 °C (–4 to +122 °F)
    Liner material PTFE: –20 to +90 °C (–4 to +160°F)

  • Max. process pressure

    PN 40, Class 300, 20K

  • Wetted materials

    Liner material hard rubber: 0 to +80 °C (+32 to +176 °F)
    Liner material polyurethane: –20 to +50 °C (–4 to +122 °F)
    Liner material PTFE: –20 to +90 °C (–4 to +160 °F)
    Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022)

Field of application

Thanks to its international approvals (e.g. for drinking water), Promag W serves a wide variety of applications. It is available as both compact or remote version. With its straightforward hard- and software design, Promag W 10 simplifies every step in its life cycle from engineering to servicing at usual Endress+Hauser quality. Heartbeat Technology ensures measurement reliability and compliant verification.

  • The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity.

  • Suitable for elementary measurement tasks such as raw water intake.

Device properties

  • International drinking water approvals

  • Degree of protection IP68 (Type 6P enclosure)

  • System integration with HART, Modbus RS485

  • Flexible operation with app and optional display

Benefits

  • Reliable measurement at constant accuracy with 0 x DN inlet run without pressure loss

  • Flexible engineering – sensor with fixed or lap-joint process connections

  • Application fitness – EN ISO 12944 corrosion protection for underground or underwater installation

  • Improved plant availability – sensor compliant with industry-specific requirements

  • Optimum usability – operation with mobile devices and SmartBlue app or display with touch screen

  • Simple, time-saving commissioning – guided parameterization in advance and in the field

  • Integrated verification – Heartbeat Technology

Videos

  • Proline 10 – uncompromisingly simple

  • The Electromagnetic Flow Measuring Principle

  • Heartbeat Technology
    Smart instrumentation through Heartbeat Technology

    You want to increase plant performance and reduce costs? Our smart instrumentation portfolio with Heartbeat Technology offers in-depth device insight for more cost-efficiency and operational safety.

Lean selection

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

FLEX: Lean ©Endress+Hauser

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable
Loading alternative products

Predecessor

Success stories

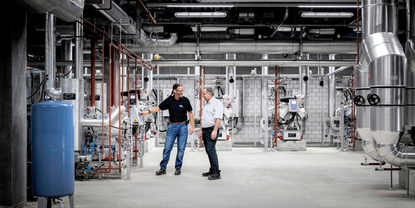

  • View into the energy center. Photo: Pierre Kellenberger Photography View into the energy center. Photo: Pierre Kellenberger Photography
