Proline Promass E 100
Coriolis flowmeter

The flowmeter with minimized total cost of ownership and an ultra-compact transmitter

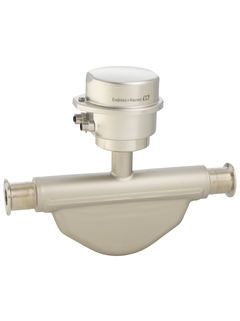

  • Proline Promass E 100 - Coriolis flowmeter ©Endress+Hauser

    Proline Promass E 100 - The Coriolis flowmeter with minimized total cost of ownership and an ultra-compact transmitter

  • The Coriolis Flow Measuring Principle

  • Introduction of Proline Web server

The robust Promass E has a long standing reputation as cost-efficient solution accurately measuring liquids and gases in a wide range of standard applications. Its ultra-compact transmitter delivers full performance on the smallest footprint and enables seamless system integration, making Promass E 100 the preferred choice for skid builders, equipment manufacturers and system integrators. Heartbeat Technology ensures compliance and process safety at all times.

Benefits

  • Cost-effective – multi-purpose device; an alternative to conventional volumetric flowmeters

  • Fewer process measuring points – multivariable measurement (flow, density, temperature)

  • Space-saving installation – no in/outlet run needs

  • Space-saving transmitter – full functionality on the smallest footprint

  • Time-saving local operation without additional software and hardware – integrated web server

  • Integrated verification – Heartbeat Technology

Field of application

  • Measuring principle operates independently of physical fluid properties such as viscosity or density

  • Accurate measurement of liquids and gases for a wide range of standard applications.

Device properties

  • Compact dual-tube sensor

  • Medium temperature up to +150 °C (+302 °F)

  • Process pressure: up to 100 bar (1450 psi)

  • Robust, ultra-compact transmitter housing

  • High ingress protection: IP69

  • Local display available
